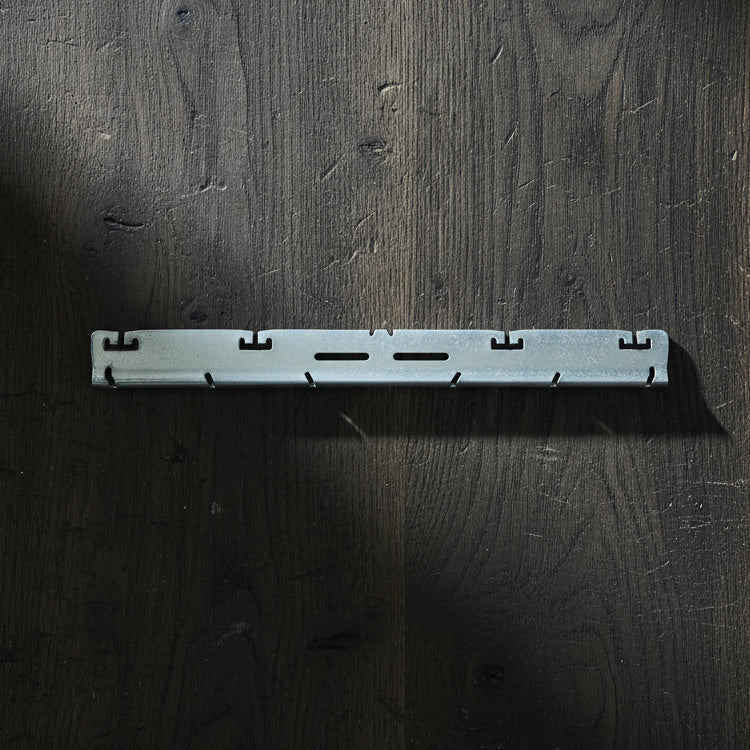

Understanding Crossarm End Styles

When designing or upgrading a trellis system, crossarms often do not get the attention they deserve. Most growers focus on post type, wire gauge, and spacing. However, the style of crossarm end plays a major role in how wires are installed, how tension is managed, and how well a trellis performs over time.

At first glance, many crossarms look similar. In practice, the end style determines whether a wire is movable or permanent, how secure it is under load, and how easy it is to maintain. Choosing the right option upfront can save years of frustration in the field.

Below is a practical breakdown of the most common crossarm end styles, including where each one works best and what tradeoffs to consider.

Slot End Crossarms

Common uses: blueberries, wine grapes, caneberries

Slot end crossarms are the simplest design. There is no wire attachment at the ends. Instead, wire positioning is handled entirely by the integrated bites along the length of the arm.

Slot end crossarms can be installed with the bites facing up or down depending on the application. If used for movable catch wires, they go up top (excempt in low areas of a vineyard where the tension of the wire is upward). For permanent wires, these should go on the bottom. They are also sometimes referred to as bites or t-bites.

Pros

• Flexible installation options


• Works well with lighter gauge wire

• Clean solution for berry crops

Cons

• No end wire retention


Best fit: blueberries and caneberries, or lighter applications

Clip End Crossarms

Common uses: wine grapes

Clip end (also referred to as slots or notches) crossarms are often misunderstood. In this design, the slanted slot is installed on the bottom, and the wire rests on top of the crossarm. The wire is then secured using a soft wire T-post clip.

This style is designed for fixed or permanent wires, such as quadrilateral cordon systems, not for movable catch wires.

Pros

• Clean and controlled wire placement

• Excellent for permanent fruiting wires

• Easy to inspect and maintain

• Consistent wire height across the row

Cons

• Requires proper orientation during installation

• Not intended for movable wires

• Relies on an additional clip for final wire security

Best fit: vineyard blocks with permanent cordon wires where wire height will not change season to season.

Bend End Crossarms

Common uses: wine grapes, blueberries, caneberries

A bend end crossarm uses the steel itself to retain the wire. Instead of clips or tabs, the end of the crossarm is bent upward to act as a physical stop.

This style is most often used for movable catch wires, where seasonal adjustments are required. The bend can also be flattened to lock the wire in place if needed.

Pros

• Very strong with no welded clips to fail

• Ideal for movable catch wires

• Simple design with long service life

• Works well in higher tension systems

Cons

• Slower to install

• Wire removal takes more effort


Best fit: growers who want a durable, low maintenance solution for catch wire management in vineyards and berry systems.

Tab End Crossarms

Common uses: wine grapes

Tab end crossarms provide one of the most secure wire retention methods available. Wires are inserted through circular holes at the end of the arm, then the flange is bent back to a straight position to lock the wire in place.

For added security, a soft wire clip can be looped through the larger circular hole and wrapped around the wire.

Pros

• Extremely secure wire attachment

• Excellent for high tension permanent wires

• Very resistant to wire movement or pop-out

• Ideal for long rows and heavier loads

Cons

• Slower to install than other styles

• Not designed for frequent wire changes


Best fit: permanent trellis systems where maximum wire security is the priority and adjustments are unlikely.

Choosing the Right Crossarm End

There is no single crossarm end that is right for every trellis. The best choice depends on:

• Whether wires are movable or permanent

• Crop type and expected load

• Desired installation speed

• Long term maintenance goals

A simple rule of thumb:

• Movable wires: slot end or bend end

• Permanent vineyard wires: clip end or tab end

• Berry crops and lighter systems: slot end

For growers who want flexibility across multiple trellis designs, our Universal Crossarm is designed with multiple wire entry points that accommodate both movable and permanent wires, while fitting a wide range of post profiles. It is a practical option for vineyards that expect to adapt or evolve their trellis system over time.

If you are unsure, our team is always happy to help match the right crossarm to your trellis design and crop requirements.

Key Takeaways

Crossarms are not just structural components. They control wire behavior, canopy shape, and long term trellis performance. Understanding the differences between bend end, clip end, tab end, and slot end crossarms allows you to build a trellis system that works with your vines instead of against them.

If you are planning a new trellis or updating an existing one, choosing the right crossarm end is one of the smartest decisions you can make early in the process.
